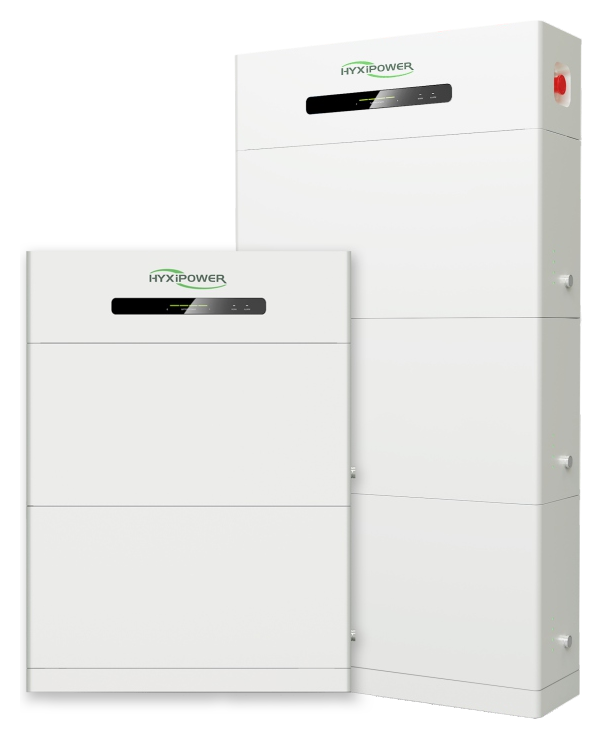

HYXiPOWER · High-voltage battery
HYX-E-H
Stackable LiFePO4 storage, with four configurations to fit your home energy system.
- Total capacity
- 5.3–21.2 kWh
- Usable capacity
- 5.035–20.14 kWh
- System protection
- IP65
- Stated warranty
- 10 years
Four stackable configurations, from 5.3 to 21.2 kWh total capacity, in a slim 200 mm-deep enclosure. A compatible external inverter completes the storage system.
Four configurations
Choose your storage capacity.
Total capacity and usable capacity are listed separately, so you can compare the range clearly.
| Model | Total capacity | Usable capacity¹ | Nominal DC output | Nominal voltage |
|---|---|---|---|---|
| HYX-E50-H | 5.3 kWh | 5.035 kWh | 3 kW | 102.4 V |
| HYX-E100-H | 10.6 kWh | 10.07 kWh | 6 kW | 204.8 V |
| HYX-E150-H | 15.9 kWh | 15.105 kWh | 9 kW | 307.2 V |
| HYX-E200-H | 21.2 kWh | 20.14 kWh | 12 kW | 409.6 V |
¹ Usable capacity is stated under the manufacturer’s test conditions: 100% depth of discharge, 0.2C charge and discharge at 25°C, at the beginning of service life. The operating specifications separately list 95% depth of discharge.
Nominal DC output is a battery rating. Available household AC power depends on the paired inverter and system configuration.
3D view for illustration only. Proportions and exterior details are approximate. Refer to the product specifications for exact dimensions, features and configuration. The model is a family illustration, rather than a specific capacity.
The battery system
Storage, in detail.
LiFePO4 cells, CAN and RS485 communication, and LED indicators for charge level and operating status.
The datasheet lists smoke detection, active pressure relief and alarms for over-charge, over-discharge, over-current, over-temperature and short circuit.
- Maximum charge / discharge current
- 35 A
- Ingress protection
- IP65 system · IP67 battery pack
- Working temperature
- −10 to +50°C
- Heating version
- −20 to +50°C
- Depth of discharge
- 95%
- Stated warranty
- 10 years; warranty terms apply
Plan the installation
A consistent footprint.
Every model is 700 mm wide and 200 mm deep. Height and weight vary with the configuration.
| Model | Width × height × depth | Net weight | Working voltage |
|---|---|---|---|
| HYX-E50-H | 700 × 600 × 200 mm | 65 kg | 86.4–115.2 V |
| HYX-E100-H | 700 × 950 × 200 mm | 115 kg | 172.8–230.4 V |
| HYX-E150-H | 700 × 1,300 × 200 mm | 165 kg | 259.2–345.6 V |
| HYX-E200-H | 700 × 1,650 × 200 mm | 215 kg | 345.6–460.8 V |
These are product dimensions. Installation clearances and mounting requirements must be checked separately.
Source: supplied Australian HYX-E50/100/150/200-H datasheet, Version 1.3-202509, pages 1–2. Specifications may change. Confirm the selected model, compatibility and installation requirements in your system design.
