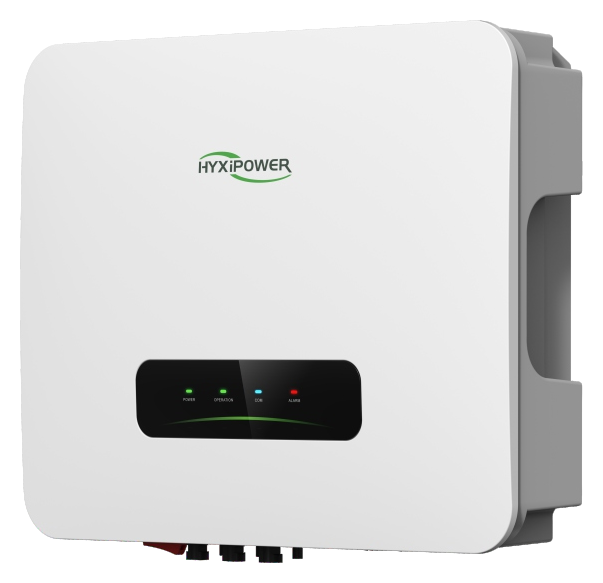

HYXiPOWER · Single-phase hybrid inverter
HYX-H-HS
Single-phase hybrid inverters with 3–8 kW nominal AC power, two MPPTs and a high-voltage battery connection.
- Nominal AC power
- 3–8 kW
- Grid connection
- Single-phase
- Solar trackers
- 2 MPPTs
- Protection
- IP65
Seven single-phase models bring solar input, a high-voltage battery connection and a backup output into one wall-mounted inverter.
Seven models
Power to suit the system.
Compare nominal AC power and the separate backup ratings for each model.
| Model | Nominal AC power | Nominal backup output | Max. continuous backup | Peak backup (10 s) |
|---|---|---|---|---|
| HYX-H3K-HS | 3 kW | 3 kVA | 3.3 kVA | 4.5 kW |
| HYX-H3K6-HS | 3.6 kW | 3.6 kVA | 4 kVA | 5.4 kW |
| HYX-H4K-HS | 4 kW | 4 kVA | 4.4 kVA | 6 kW |
| HYX-H4K6-HS | 4.6 kW | 4.6 kVA | 5.06 kVA | 6.9 kW |
| HYX-H5K-HS | 5 kW | 5 kVA | 5.5 kVA | 7.5 kW |
| HYX-H6K-HS | 6 kW | 6 kVA | 6.6 kVA | 9 kW |
| HYX-H8K-HS | 8 kW | 8 kVA | 8 kVA | 9.6 kW |
Peak backup is a 10-second rating, not continuous output. The datasheet states an automatic on/off-grid switching time below 10 ms. Backup availability and supported loads depend on battery capacity, configuration, wiring and commissioning.
Solar + battery connection
Two inputs. One inverter.
Two independent MPPTs support the solar array, with one string per tracker. The battery connection supports lithium-ion storage within the stated voltage range.
PV array sizing and battery pairing should be checked for the selected model and site.
- MPP trackers / strings
- 2 MPPTs · 1 string per MPPT
- Maximum PV input voltage
- 600 V
- MPPT operating range
- 80–560 V
- Maximum PV current
- 16 A per MPPT · 32 A total
- Battery voltage range
- 80–490 V
- Maximum battery charge / discharge current
- 35 A
- Maximum battery charge / discharge power
- 8 kW (datasheet limit)
Designed for the wall
Compact. Naturally cooled.
An IP65 enclosure with natural cooling, LED status and app/web display options.
The datasheet lists Type II DC/AC surge protection, anti-islanding protection and monitoring for insulation resistance and residual current.
- Grid connection
- Single-phase · 220 / 230 / 240 V
- Dimensions (W × H × D)
- 522 × 416 × 177.6 mm
- Weight
- 20 kg
- Operating temperature
- −25 to +60°C
- Maximum efficiency
- 98.6%
- European weighted efficiency
- 98.2%
- Communication
- CAN / RS485 / Wi-Fi / 4G / LAN
Communication options and accessories should be confirmed for the supplied configuration. The inverter datasheet does not state a warranty period.
Source: supplied Australian HYX-H3K/3K6/4K/4K6/5K/6K/8K-HS datasheet, V1.0-202407, pages 1–2. Specifications may change. Confirm the selected model, compatibility and installation requirements in your system design.
